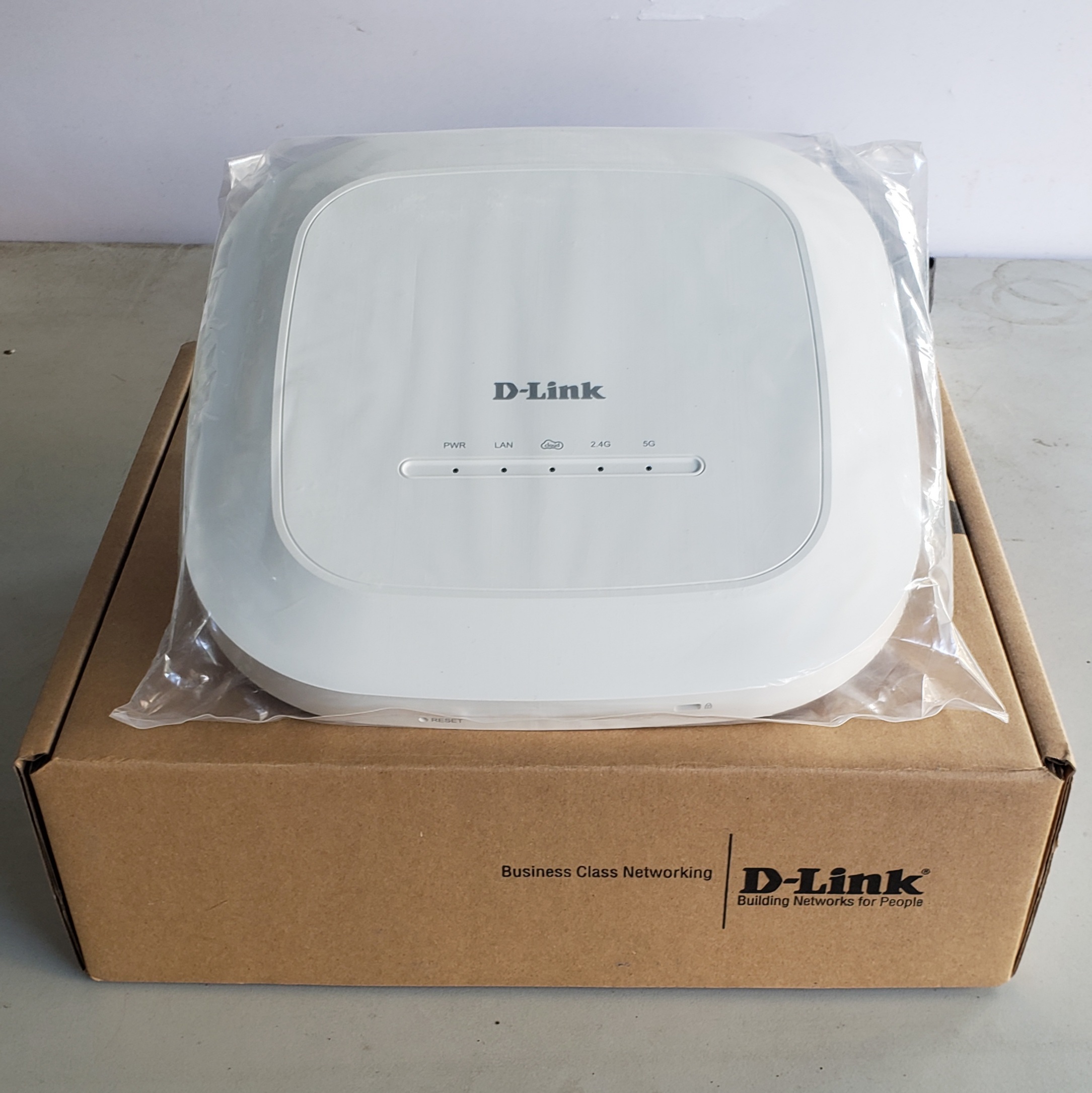

Dlink DBA1510P

Model

DBA‑1510P

General

Interfaces

• IEEE 802.11a/b/g/n/ac wireless
• 1 x 10/100/1000 Mbps Ethernet PoE port
• 1 x 10/100/1000 Mbps serial console port

Standards

• IEEE 802.11a/b/n/g/ac
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• IEEE 802.3at Power over Ethernet (PoE)
• IEEE 802.3i/u/ab
• IEEE 802.3x Flow Control

LEDs

• Power
• LAN
• Cloud
• 2.4 GHz
• 5 GHz

Antenna

• Built-in 3 x 3 MIMO antenna

Maximum Power Output

• 2.4 GHz: 15 dBm • 5 GHz: 15 dBm

Data Signal Rate

• 2.4 GHz: Up to 450 Mbps • 5 Ghz: Up to 1300 Mbps

Functionality

Security

• WPA2-Personal/Enterprise
• WPA-Personal/Enterprise
• IEEE 802.1X port-based network access control
• MAC address filtering
• Station isolation
• SSID isolation
• Guest isolation
• Captive portal

Maximum SSIDs

• Supports up to 16 SSIDs per device
• Up to 8 SSIDs per wireless band

Physical

Dimensions

• 220 x 220 x 35 mm (8.66 x 8.66 x 1.38 in)

Weight

• Without mount: 852 g (1.88 lbs) • With mount: 934 g (2.06 lbs)

Power Input

• IEEE 802.3at Power over Ethernet (PoE) • Power adapter: 100 to 240 V AC, 50/60 Hz

Power Consumption

• PoE: 12.9 W • Power adapter: 12.3 W

Temperature

• Operating: 0 to 40 °C (32 to 104 °F) • Storage: -30 to 70 °C (-22 to 158 °F)

Humidity

• Operating: 10% to 90% non-condensing • Storage: 5% to 95% non-condensing

Mean Time Between Failure (MTBF)

• > 30,000 hours

Mounting Options

• Ceiling mount
• Wall mount
• Desktop (horizontal)

Hardware Security

• Kensington lock slot • Security screw
